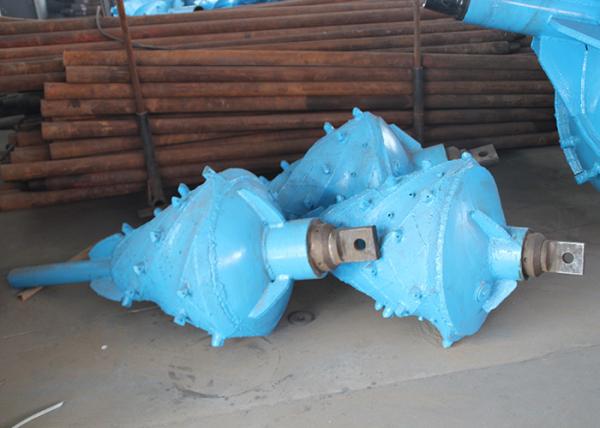

High Speed Hole Opener Fluted Reamer For HDD Drilling
Product Description
Rock Reamer
Our roller cone reamer is suitable for all types of non-excavation drilling rig and can be used for reaming construction in a
variety of rock formations. Our specification is covering φ260mm-φ1800mm.
serial
number | 1 | 2 | 3 | 4 |
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) |
| 1 | Φ200 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 2 | Φ250 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 3 | Φ300 | 60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 4 | Φ400 | Φ60 | 50 | 280 | 68 | 50 | 330 | Φ76 | 60 | 400 |
| 5 | 500 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | 76 | 60 | 400 |
| 6 | Φ600 | Φ60 | 50 | 280 | Φ68 | 50 | 330 | Φ76 | 60 | 400 |
| 7 | Buckle type (A) | Φ50 drill pipe buckles are
recommended | 60 drill pipe buckles are
recommended | 73 drill pipe buckles are
recommended |
serial
number | 1 | 5 | 6 | 7 |
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) |
| 1 | Φ200 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 2 | Φ250 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 3 | Φ300 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 450 |
| 4 | Φ400 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 5 | Φ500 | Φ89 | 80 | 450 | 95 | 80 | 450 | Φ102 | 110 | 500 |
| 6 | Φ600 | Φ89 | 80 | 450 | Φ95 | 80 | 450 | Φ102 | 110 | 500 |
| 7 | Buckle type (A) | Φ73/76drill pipe buckles
are recommended | Φ83 drill pipe buckles are
recommended | Φ89 drill pipe buckles are
recommended |
serial
number | 1 | 8 | | | 9 | | | 10 | | |
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) |
| 1 | Φ200 | Φ108 | 110 | 450 | | | | | | |
| 2 | 250 | Φ108 | 110 | 450 | | | | | | |
| 3 | Φ300 | 108 | 110 | 450 | Φ121 | 110 | 550 | | | |
| 4 | Φ400 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| 5 | Φ500 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| | Φ600 | Φ108 | 110 | 500 | Φ121 | 110 | 550 | Φ127 | 110 | 550 |
| 7 | Buckle type (A) | Φ89 drill pipe buckles are
recommended | Φ102/Φ114drill pipe
buckles are recommended | Φ114 drill pipe buckles are
recommended |
serial
number | 1 | 11 | 12 |
| Specification (D) | Dabber (B) | Length (C) | Length (E) | Dabber (B) | Length (C) | Length (E) |
| 1 | Φ200 | Φ108 | 110 | 450 | | | |
| 2 | 250 | | | | | | |
| 3 | Φ300 | | | | | | |
| 4 | Φ400 | Φ168 | 180 | 650 | Φ194 | 200 | 700 |
| 5 | Φ500 | 168 | 180 | 650 | Φ194 | 200 | 700 |
| 6 | 600 | Φ168 | 180 | 650 | 194 | 200 | 700 |
| 7 | Buckle type (A) | Φ114/Φ127 drill pipe
buckles are recommended | Φ140 drill pipe buckles
are recommended |
Product usage notes
When it comes time to rebuild your reamer, making new welds on top of old ones is not recommended. The connections won’t be as durable, thus reducing the amount of time between rebuilds. Those shorter rebuild intervals will cost you time and money, and potentially reduce the life expectancy of your reamer.
Since cast reamers only have welds connecting the reamer body to the spud, it’s much easier and faster to perform a rebuild and if implemented correctly, it should last longer than what you would get with a fabricated flute body.
